Product Description
In today's industrial manufacturing field, metal 3D printing technology is with its unique advantages, for all walks of life to bring revolutionary changes. Especially in the mold industry known as the "mother of industry", the application of metal 3D printing technology not only significantly shorten the manufacturing cycle, improve production efficiency, reduce costs, but also to achieve the integration of complex design structure rapid prototyping, thus giving the mold manufacturing new quality productivity.

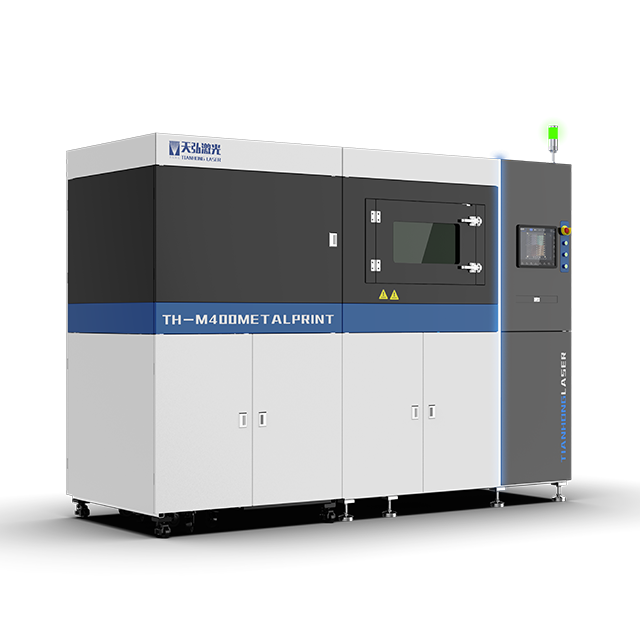

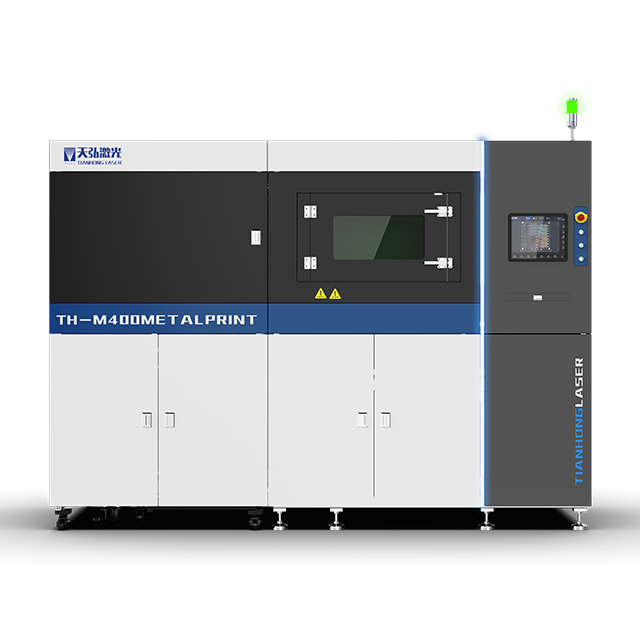

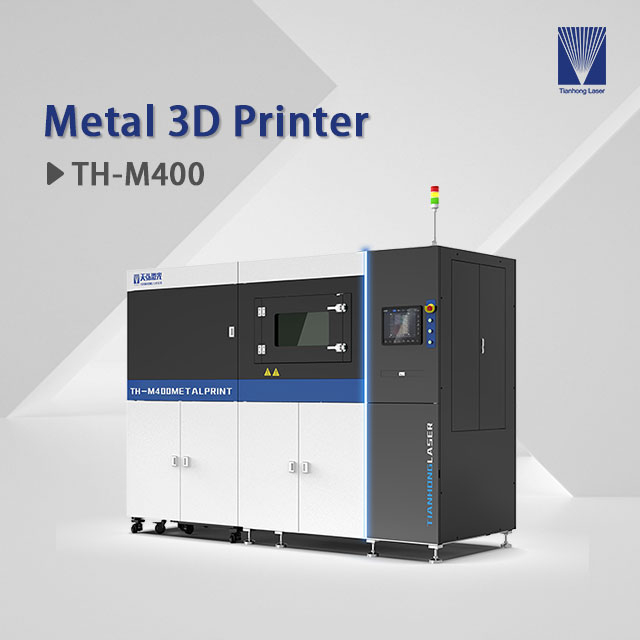

For the mold industry's diversified production scenarios demand, Tianhong laser launched the metal 3d printing service TH-M400 for molds, can meet the needs of different users of the print format. At the same time, the user can choose according to the actual needs of single / dual / four laser configuration, flexible response to different production scenarios, to fully meet the user's batch production needs.
|
Product Features
- TH-M400 adopts metal powder bed melting technology, the forming chamber can reach406*406*450mm3;
- There are single laser, dual laser, four laser three configurations to choose from;
- Efficient and stable powder supply system, can prints a wide range of high-temperature metal materials;
- Multi-beam seamless splicing, splicing area precisiondeviation <± 0.1mm.
|
Technical Parameters
| Dimension | L(3440)xW(1270)xH(2500)mm3 |
| Forming cylinder size | 406mmx406mmx450mm |
| Scanning speed | 4 x 7m/s |
| Light spot diameter | 70-120μm |
| Light source | 4 x 500W |
| Powder layering thickness | 20-120μm |
| Forming speed | Max 140cm3/h |
| Applicable material | Titanium alloys, high-temperature alloys, stainless steel, high-strength steel, die steel |
| Chamber oxygen level | ≤100ppm |
| Protective gas | Nitrogen/Argon |
| Data format | STL file |
| Complementary software | TH-3Dprint |
| Electrical consumption | 380V，34KW |
| Weight | 4.2T |
|
Aplication Matirals and Fields
China Cheap Metal 3d Printing Service TH-M400 for Molds can print titanium alloy, aluminium alloy, high-temperature nickel-based alloys, die steel, stainless steel, cobalt-chromium-molybdenum and other materials to meet the needs of high-efficiency, high-strength, high-quality, sustainable production, applicable tothe aerospace, mold, medical equipment, automotive parts and other fields of large size, high preci-sion, high performance parts direct manufacturing. lt is suitable for the direct manufacturing of large-size, high-precision and high-performance parts in the fields of aerospace, moulds, medical equipment and automotive parts.
|

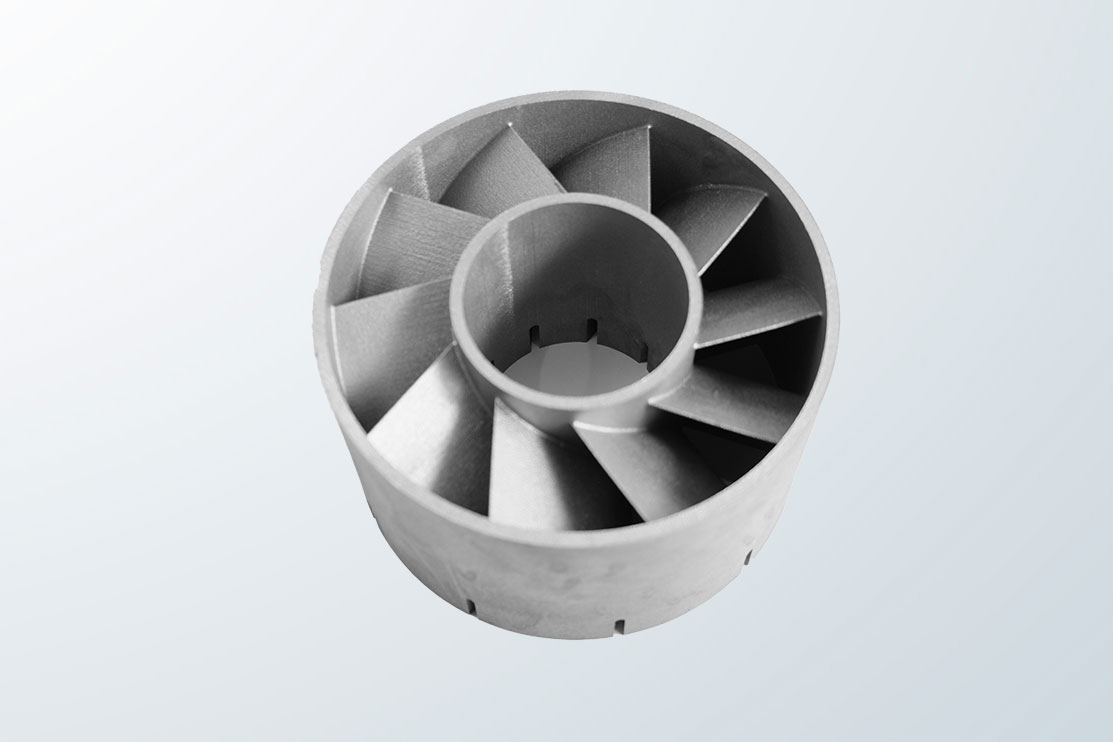

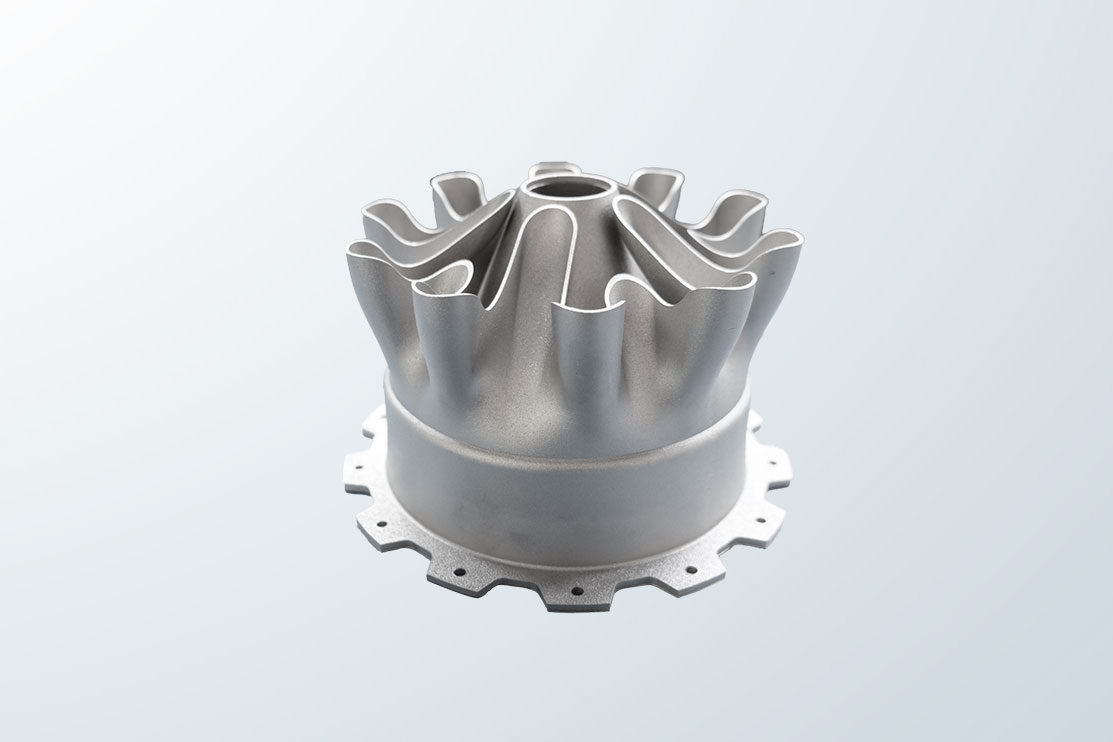

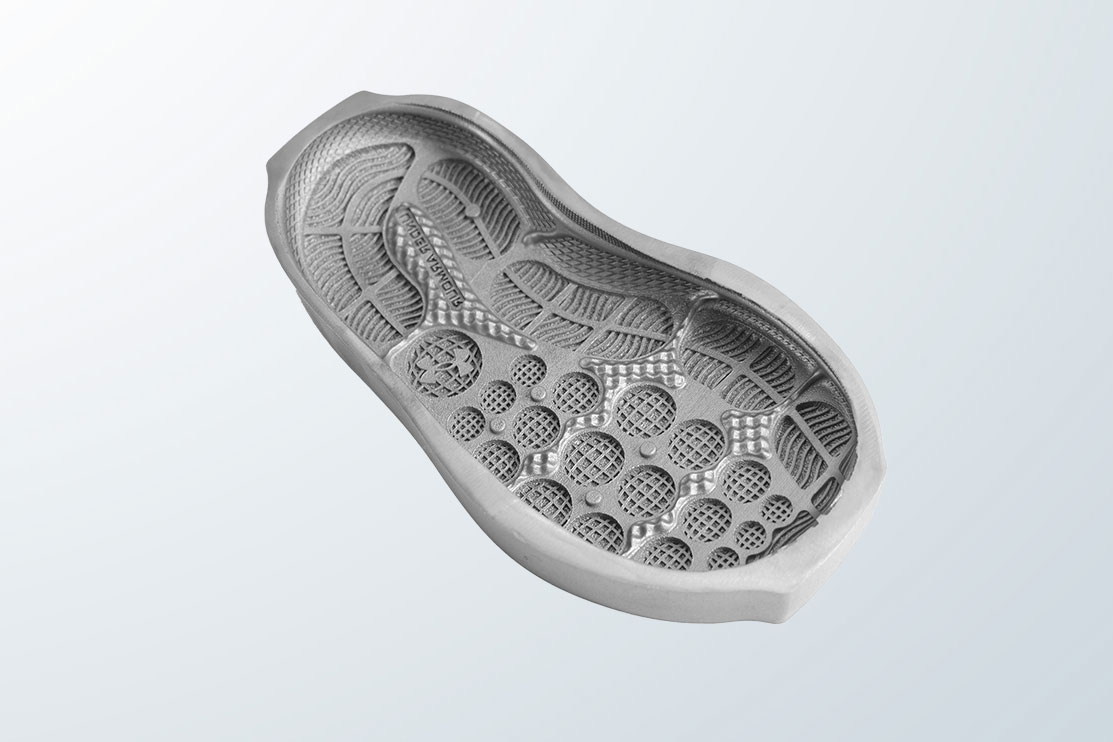

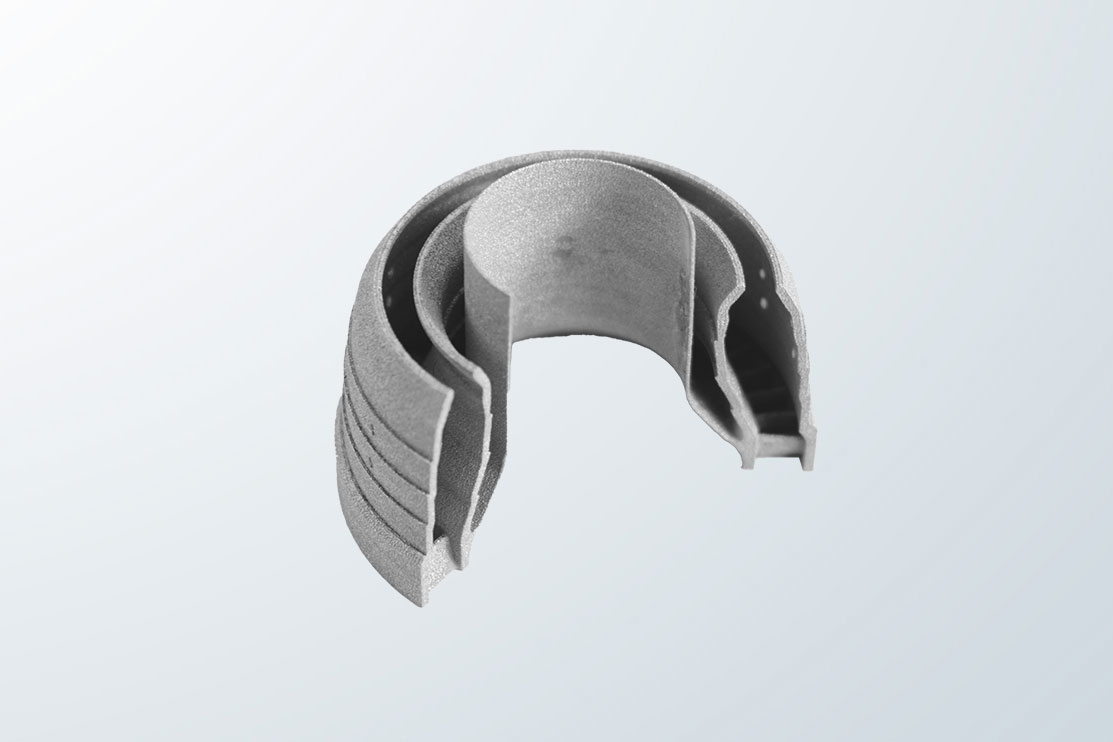

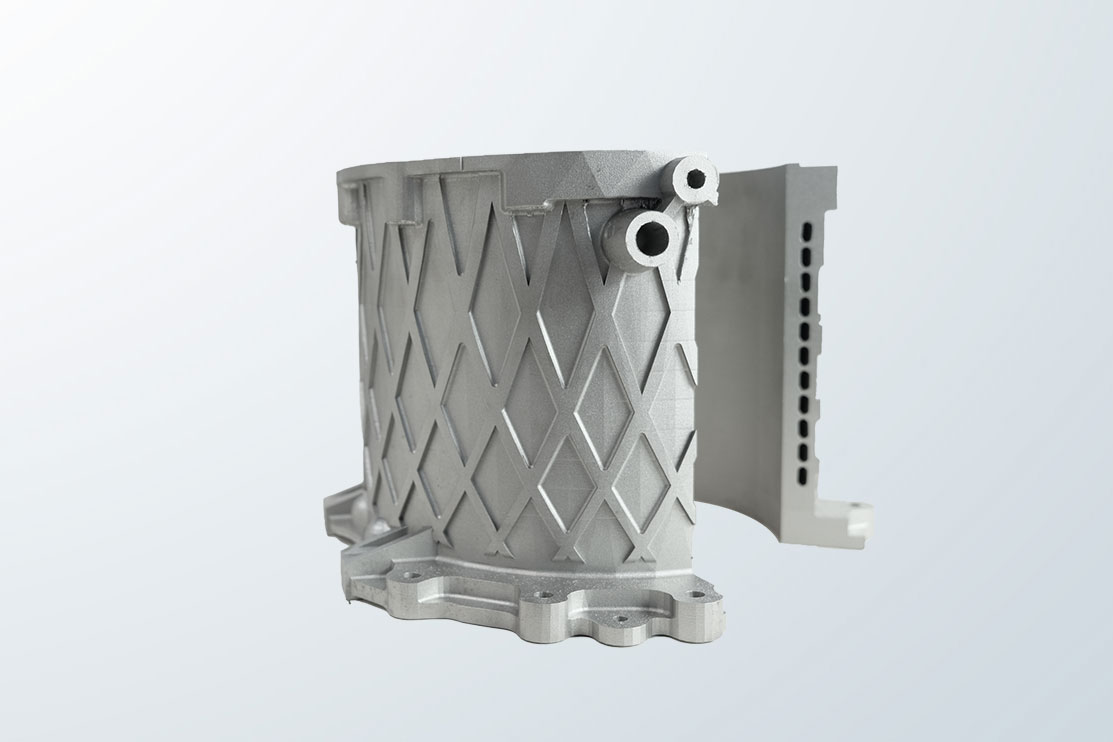

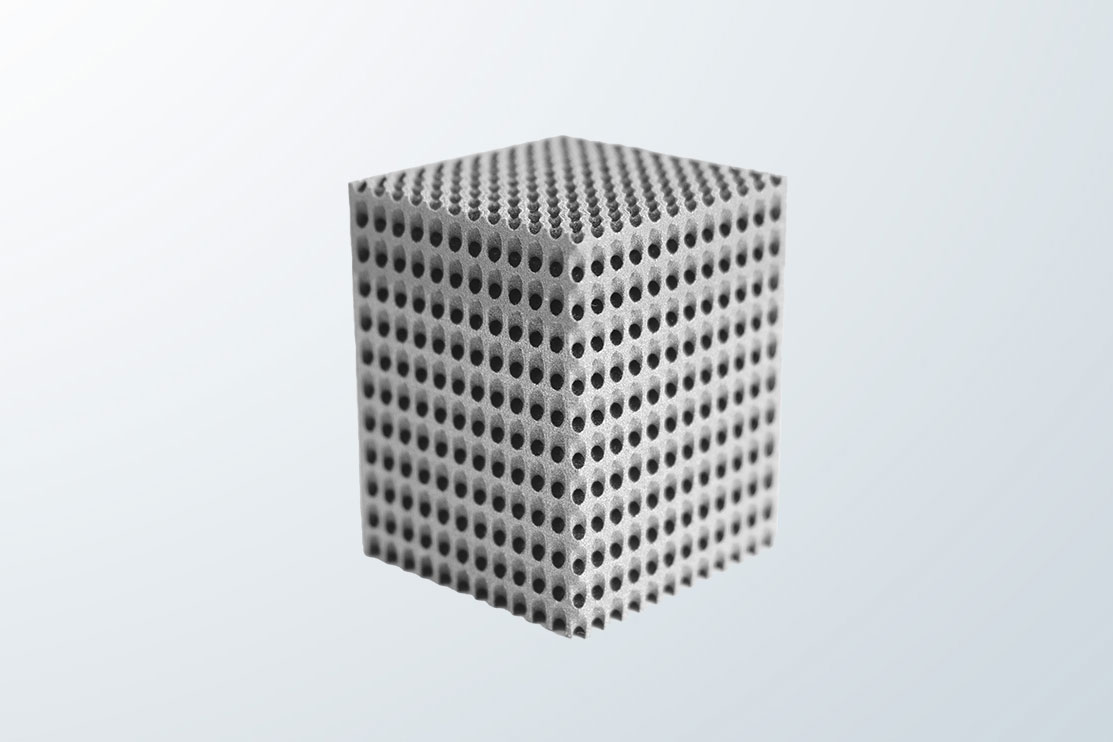

Samples
