Welding is a vital process in a variety of industries, and two of the most popular welding methods are Laser Welding and MIG Welding (Metal Inert Gas). Each technique has unique advantages, making it crucial to understand their strengths, weaknesses, and suitability for specific applications. One common question asked is: "Is laser welding as strong as MIG welding?" In this article, we will compare both welding techniques, their strengths, weaknesses, and help you decide which method is better suited for different tasks.

What is Laser Welding?

Laser welding is a high-precision welding technique that uses a focused laser beam to melt and fuse materials. The laser's energy is concentrated into a small spot, allowing it to join materials with minimal heat distortion and high accuracy.

Laser Welding Technique

Laser welding involves using a focused laser beam to melt the material at the weld joint. The laser energy quickly melts the material, forming a weld pool. This process is highly localized, which reduces the heat-affected zone (HAZ) and minimizes distortion. Different types of lasers can be used in laser welding, such as fiber lasers, CO2 lasers, and YAG lasers. Each type is suitable for different material thicknesses and applications.

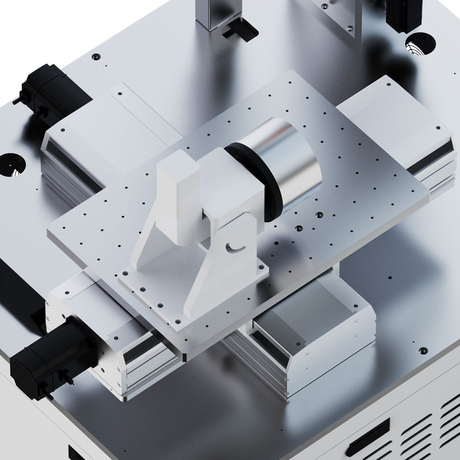

Laser welding is often performed using Handheld Laser Welding Machines for smaller, precise applications, or Multi-axis Platform Laser Welding Machines and Manipulator Laser Welding Machines for larger, more complex welding tasks, often automated for high production rates.

What is MIG Welding?

MIG welding, or Metal Inert Gas welding, is a process in which a continuous wire electrode is fed into a weld pool. The process uses an electric arc to melt both the electrode and the workpiece, creating a bond between them. MIG welding operates in a shielding gas environment to protect the weld pool from contamination by atmospheric elements.

MIG Welding Technique

In MIG welding, the heat generated by an electric arc melts the electrode wire, which then acts as the filler material to join the metal parts. The process is relatively simple and can be used manually or with automated systems, making it popular in many industries. MIG welding works well for both thin and thick materials, but it is especially effective for thicker materials due to its deep penetration capabilities.

Laser Welding vs. MIG Welding: Actual Visible Differences

When comparing laser welding and MIG welding, there are several key differences in their appearance, efficiency, and application. The following table summarizes the major differences:

Feature	Laser Welding	MIG Welding
Weld Appearance	Narrow, fine weld seam with minimal distortion	Wider weld bead with visible spatter and slag
Heat-Affected Zone (HAZ)	Small HAZ, minimal warping	Larger HAZ, more distortion
Speed	Faster for thin materials	Slower for thin materials but faster for thick
Strength	Strong, but less deep penetration for thick materials	Stronger for thick materials due to deep penetration
Material Compatibility	Ideal for thin materials, stainless steel, aluminum, and titanium	Works well with thick materials, steel, aluminum, stainless steel
Post-Processing	Minimal clean-up and spatter	Requires clean-up due to spatter and slag

Pros and Cons of Laser Welding

Laser welding is well-suited for precise, high-quality welds, but it has both advantages and disadvantages depending on the application.

Pros of Laser Welding

1. High Precision: Laser welding provides exceptional accuracy, making it ideal for small, intricate parts.

2. Minimal Distortion: The narrow heat-affected zone reduces material distortion, which is essential for thin-walled or delicate materials.

3. High-Speed Operation: The fast welding process is ideal for high-volume production, especially when combined with automated systems.

4. Clean Welds: Laser welding produces a cleaner weld with minimal spatter and no need for post-processing in most cases.

5. Less Heat Input: Since the laser focuses on a small area, the heat input is minimized, reducing the risk of burn-through or warping.

6. Versatility: Laser welding can be used on various materials, including metals and plastics (via Plastic Laser Welding Machines).

Cons of Laser Welding

1. High Initial Cost: Laser welding machines are typically more expensive than MIG welding machines, making it a more significant investment.

2. Material Thickness Limitation: While laser welding excels at welding thin to medium-thick materials, it struggles with very thick metals unless high-powered systems are used.

3. Skill Requirements: Operating laser welding machines requires advanced training and expertise to avoid defects.

4. Sensitivity to Contaminants: Laser welding is highly sensitive to contaminants on the workpiece, requiring clean surfaces for optimal results.

Pros and Cons of MIG Welding

MIG welding is one of the most widely used welding processes, but it also has its advantages and limitations.

Pros of MIG Welding

1. Versatility: MIG welding can handle a wide range of metals and thicknesses, making it suitable for various industries.

2. Deep Penetration: MIG welding is ideal for thick materials, providing deep penetration and strong bonds.

3. Lower Initial Cost: MIG welding equipment is generally more affordable compared to laser welding systems.

4. Ease of Use: MIG welding is relatively easy to learn, and operators can quickly get the hang of it compared to more complex welding methods like laser welding.

5. High Productivity: MIG welding can be faster for thick materials, leading to higher production efficiency in certain applications.

Cons of MIG Welding

1. Wider Heat-Affected Zone: MIG welding tends to produce a larger heat-affected zone, which can lead to distortion and warping, especially in thin materials.

2. More Spatter: MIG welding produces more spatter, requiring additional clean-up and post-weld processing.

3. Less Precision: While MIG welding is versatile, it doesn’t provide the same level of precision as laser welding, especially for small, intricate parts.

4. Gas Shielding Requirement: MIG welding requires a constant supply of shielding gas, adding to operational costs and complexity.

Laser vs. MIG Welding: Which One is Better?

Deciding which welding method is better depends on your specific requirements. Below is a comparison to help guide your choice.

Use Laser Welding if:

• You need high precision and minimal heat distortion.

• You are working with thin materials or require fine details.

• Speed is essential for your process, especially with automated systems.

• You need clean, aesthetic welds with minimal post-processing.

Use MIG Welding if:

• You are working with thicker materials that require deep penetration.

• You need a cost-effective solution and don’t mind some post-weld clean-up.

• The project involves high productivity with less concern for fine detail.

• You need a versatile welding method that works on various metals and thicknesses.

Welding Strength Comparison: Laser vs. MIG

Welding Method	Laser Welding	MIG Welding
Strength for Thin Materials	Excellent, with minimal distortion	Good, but may create a wider heat-affected zone
Strength for Thick Materials	Adequate, but penetration may be limited	Excellent, due to deep penetration
Speed	Faster for thin materials	Slower for thin materials but faster for thick
Weld Quality	Clean, precise, minimal spatter	Good, but requires clean-up
Penetration Depth	Limited for very thick materials	Deep, especially for thick materials

Conclusion

In conclusion, both laser welding and MIG welding are excellent welding methods, each with its own strengths and weaknesses. Laser welding excels in precision, minimal distortion, and clean welds, making it ideal for thin materials or intricate work. However, it has limitations in terms of material thickness and requires a higher initial investment.

MIG welding, on the other hand, is versatile, cost-effective, and better suited for thicker materials. It is capable of providing deep penetration, making it ideal for heavy-duty applications. While MIG welding may require more post-processing and results in a wider heat-affected zone, it remains a strong contender for a wide range of industrial applications.

FAQ

Do laser welders make strong welds?

Yes, laser welds are strong, especially when performed with proper settings. They are ideal for thin to medium-thick materials.

Is laser welding as good as MIG welding?

Laser welding is superior in precision and speed, while MIG welding is better for thicker materials and deep penetration.

Which welding has the highest strength?

MIG welding tends to offer higher strength, especially for thick materials, due to its deep penetration capabilities.

What is the disadvantage of laser welding?

The primary disadvantage of laser welding is its high initial cost and limitations when welding very thick materials.
